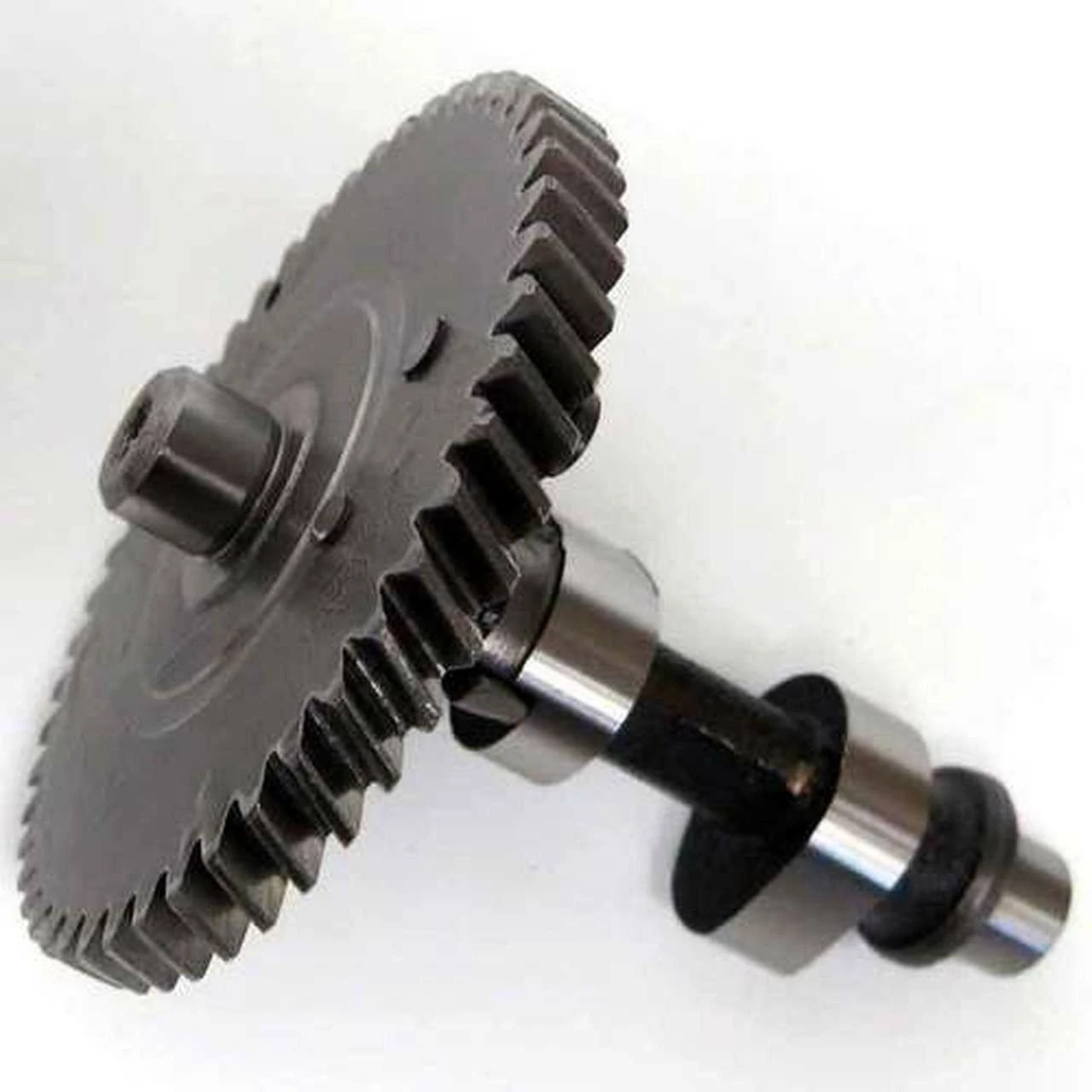

DynoCams Dyno Cams CM Grind Super X – Hemi 212cc GX200 196cc

Dyno “CM” Modified Superbox Cam for Honda GX200, Predator 212 HEMI, or BSP Clone 6.5 with bored stock carb or tilly carb.* This cam provides .265″ lift at the cam, which works out to .275″ lift with the stock rockers.* Intake duration is 236 and Exhaust duration is 236.* Popular for Superbox, F200, or other limited mod application.* Valve spring upgrade along with a billet rod and billet flywheel is needed for added durability necessary with the increased RPM this cam will produce.

Agressive ramp cam for Modified class motor.
Use with bored stock or Tillotson carb
Requires upgraded spring package, billet rod and billet flywheel.

Engine: 196cc OHV Clone
Recommended Class: Super Stock
Target (MAX) RPM: 7500
Spring Pressure (In / Ex): 20 lbs
Valve Lash (IN/EX): .003″
Ignition Timing: 32 Deg BTDC

INTAKE
LIFT: .265
Dur @ .050″: 236.9 Deg.
C/L: 108 ATDC

EXHAUST
LIFT: .265
Dur @ .050″: 236.5 Deg.
C/L: 108 BTDC

THIS CAM IS FLAME HARDENED HEAT TREATED
Processed and ground by the hard working employees of DynoCams in the USA.
