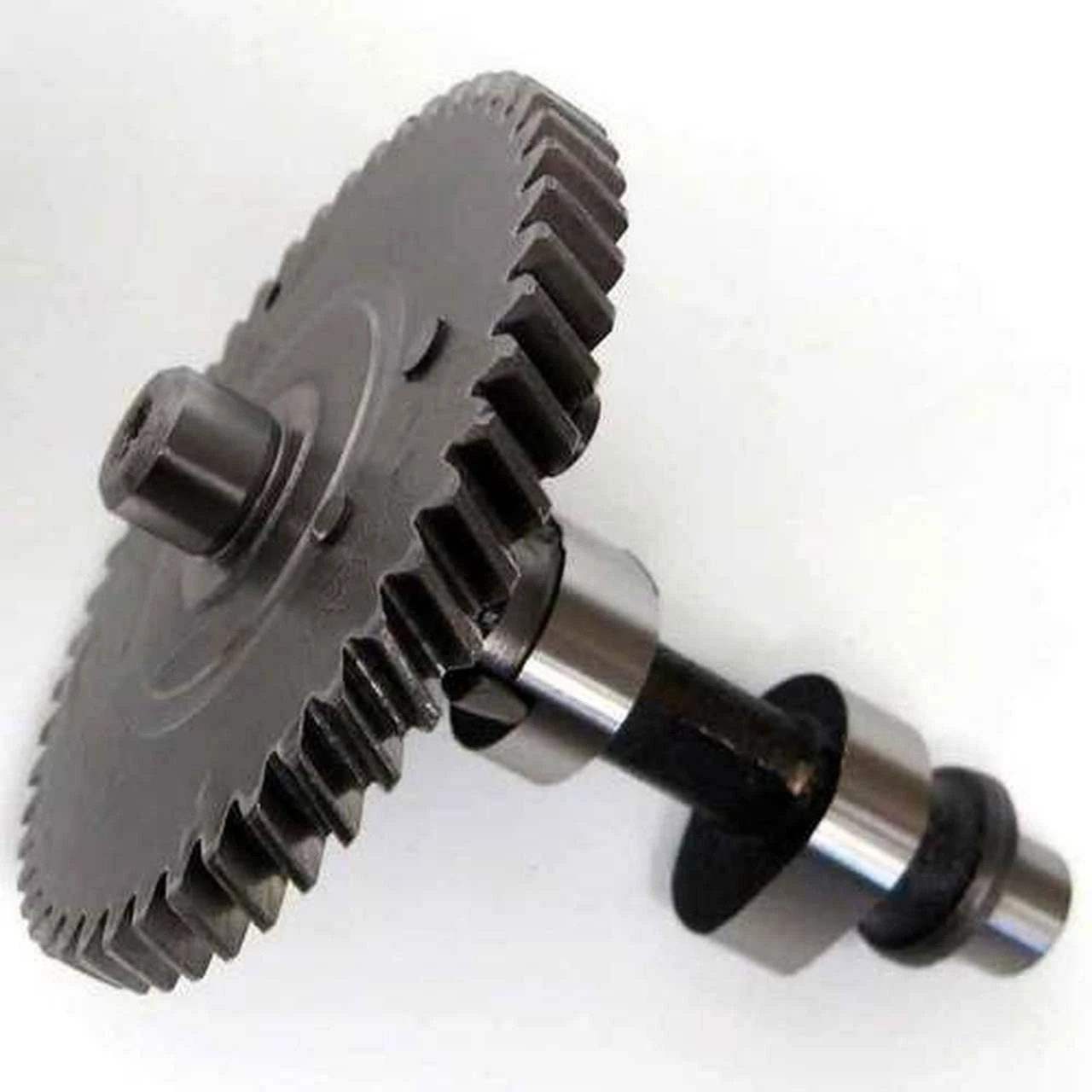

DynoCams F-275 Grind Cam, Welded Lobe Clone GX200 Tillotson Predator 212 Hemi And 224 Max
Original price was: $107.50.$78.48Current price is: $78.48.
- Buy Quality, Live Better
- Superior Quality Goods
- Effortless solutions, excellent customer care.
- Shop with confidence, enjoy free returns.
Welded Lobe Cam for Modified Classes. This cam has a .278 lift and has maximum open valve duration (Duration at 50 – 258.8 Degree, Duration at 200 – 158.1) Max RPMs 8200-8400 Spring Pressure recommended IN/EX 32lbs Be careful with ratio rockers with this cam. The ratio combined with the monster duration of this cam may leave the valve open too long.
This cam has very aggressive ramps and requires an upgraded spring package, billet rod, and flywheel. Use bored stock or Tillotson carb. Great cam if you have a lift check requirement but want maximum open valve duration.
Engine: 196cc OHV Clone
Recommended Class: Modified
Target (MAX) RPM: 8200-8400
Spring Pressure (In / Ex): 32 lbs
Valve Lash (IN/EX): .003″
Ignition Timining: 32 Deg BTDC
INTAKELIFT: .278
Dur @ .050″: 258.7 Deg.
C/L: 108 ATDC
EXHAUSTLIFT: .278
DUR @ .050″: 258.6 Deg.
C/L: 110 BTDC
THE LOBES ON THIS CAM ARE WELDED.
Processed and ground by the hard working employees of DynoCams in the USA.
